Hand Press Machine (exclusively for Hand press dies) made 100% in Japan.
The quality of the products is well known because they have been used in various scenes for many years.
Often, there are mass-produced overseas products in which the center of the main shaft and the lower hole are off-center.
Such products do not stop metal fittings well.

The structure of the Hand Press Machine is quite simple.
By lowering the handle, the main shaft is lowered, and the metal fittings can be fixed at a vertical angle, both vertically and horizontally.

When you use "Setters" to fasten metal fittings, they sometimes shift from top to bottom.
This symptom is especially common in "Rivet (metal fittings)".
Many people think it is because the Setter taps at an angle, but actually the cause is different.
The cause of this symptom is because the top and bottom of the metal fittings are not fixed.
When fastening a Rivet (metal fittings), few people would check to make sure that the fitting range (leg length) of the fittings is exactly correct for the thickness of the leather before fastening the caulking fittings.
Therefore, when the Setter is struck, the legs of the metal fittings that are not fully collapsed cannot withstand the pressure from above, and escape to the "side, where the force can easily escape," causing them to shift up and down.

To prevent this, it is essential to use a Hand Press Machine.
The Hand Press Machine does not cause the metal fittings to shift up and down like the Setter.
This is because the "Hand press dies" do not allow the legs of fittings that are not fully collapsed to escape to the left or right, and they are vertically collapsed and crimped.

Our Hand Press Dies are manufactured as "genuine products of metal fitting manufacturers".
Even though the outside diameter size of metal fittings is the same size, the shape differs depending on the hardware manufacturer.
This is because "the molds used by each manufacturer are different.
Select Hand Press Dies that are compatible with metal fittings, as this will lead to deformation of the metal fittings.



【Characteristics】

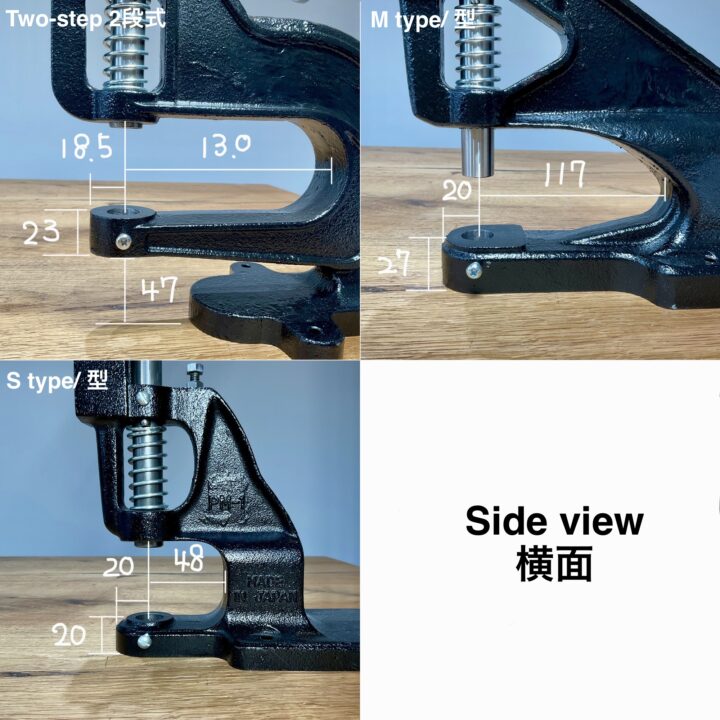

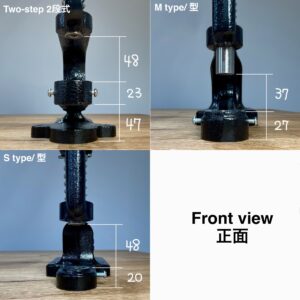

【On the difference between S- and M-types】
(1) S-type has a depth of 70 mm and M-type has a depth of 140 mm.
(2) The stroke of the main shaft is about 25mm for both S and M models.
(3)The S-type weighs 3 kg and the M-type weighs 5 kg.
Generally, the S-type is preferred because of its ease of handling.
Please use it according to the type of work you want to make.


【Country of manufacture】
Hand Press Machine (exclusively for Hand press dies) made 100% in Japan.
The quality of the products is well known because they have been used in various scenes for many years.
Often, there are mass-produced overseas products in which the center of the main shaft and the lower hole are off-center.
Such products do not stop metal fittings well.


【About the standard】
The spindle thread for the upper die is W5/16-18 and the hole diameter for the lower die is 19mm.
Please use Hand Press Dies that meet the standard.


【About Hand Press Dies】
Our Hand Press Dies are manufactured as "genuine products of metal fitting manufacturers".
Even though the outside diameter size of metal fittings is the same size, the shape differs depending on the hardware manufacturer.
This is because "the molds used by each manufacturer are different.
Select Hand Press Dies that are compatible with metal fittings, as this will lead to deformation of the metal fittings.


【About the sound of work】
In some residential environments, such as condominiums, the sound of blows to the Setter is another concern.
Since the Hand Press Machine makes no sound, it can be used safely even when working in the middle of the night.


【Caution】
The "body and handle" of this Hand Press Machine are made of cast iron.
Please do not drop the machine or apply excessive load to it.
Doing so may cause damage.
